浮游菌測定器

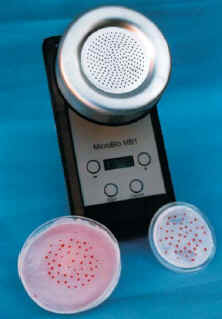

Air
Sampler - MB1
Low cost Air Sampling for:
* Food processing
* Clean Rooms
* Pharmaceutical Production
* Hospitals and Clinics
* Animal Houses
* Waste & Sewage Industries
* Ventilation Engineers
Features:
* Microprocessor controlled
* Flow rate 100 litres/min, factory calibrated
* Sampling volume 25 to 1500 litres
* Lightweight (650g), and portable
* Battery Powered - rechargeable NiMH (4xAA) - charger supplied
* Simple to Operate, Low noise
* Controlled by Membrane type switches
* 4 Digit LED display shows volume
* Uses standard 90mm or 55mm (Rodac) petri dishes contact plates
唯一輕便精確、經濟、手握式使用方便、自動校準計算、無須專業技術即可操作的空氣中浮游菌測定器MICROBIO Air Sampler-MB1是設計用來供測定存活在空氣中所產生的浮游菌污染物。 例如各種細菌、酵母菌、黴菌、酵素、及胞菌等等。需要被測試的空氣樣品是經由空氣中浮游菌測定器MICROBIO Air Sampler-MB1上面的樣品頭吸取到含有培養基的培養皿(contact plate)上。 例如敝公司代理的MW610 Q.C.Plate (T.S.A.)上含有現成配好的而且有微凸的表面供作為收集及培養空氣中各種浮游微生物細菌,供無菌測試之用。 MW605 Q.C.Plate可供測試各種黴菌、酵母菌之用。 MW600 Q.C.Plate可供測試各種腸內細菌之用。
使用方法:
1. 旋開鋁製採樣頭,放入培養皿(Q.C.Plate)。
2. 蓋回採樣頭,按壓電源開關I/O。
3. 設定時間單位SET TIME(每一時間單位20秒)。
4. 按START渦輪定量風扇啟動開關。
5. 渦輪定量風扇指示燈熄之後取出 Q.C.Plate。
6. 將 Q.C.Plate放入培養箱培養後計算菌落數。
7. 比對校正表自行計算或使用機器提供的電腦程式輸入菌落數及時間單位即可獲得正確的
測定結果(CFU/M3)。
使用範圍:
包括醫院手術室、各種無菌室、無塵室、酒廠發酵室、食品處理工廠及所有需要控制空氣中各種浮游微生物污染物的地方。
測定器規格:
空氣中浮游菌測定器MICROBIO Air Sampler-MB1機器本體中除外殼、採樣頭、主基板、渦輪定量風扇外、機器內還有可充電電池及充電電源線供方便使用。
☆ 採樣頭: 可高溫滅菌的鋁製220個1mm孔採樣頭。
☆ 培養皿: 使用55mm contact plate或90mm petri dished.。
☆ 渦輪定量風扇: 100 Liters/Minute(100公升/分鐘)。
☆ 時間設定單位: 每一時間單位20秒。可依地點及環境的不同設定到300秒。
本測定器附詳細中文操作說明書。
穗滿企業股份有限公司
台北市忠孝東路4段162號5樓之3
服務電話:(02)2731-7727
傳 真:(02)2731-8221
中華民國九十三 年 四 月十五 日校譯
產品附中文使用說明書
Product include Chinese operation manual
本公司由原廠提供校正設備
Positive Hole Correction Table for Microbio
220 Hole Multiple Jet Impactor
菌落數比對對照表
Count |
Corrected |
Count |
Corrected |
Count |
Corrected |
Count |
Corrected |
1 |
1 |
51 |
58 |
101 |
135 |
151 |
255 |
2 |
2 |
52 |
59 |
102 |
137 |
152 |
258 |
3 |
3 |
53 |
61 |
103 |
139 |
153 |
262 |
4 |
4 |
54 |
62 |
104 |
141 |
154 |
265 |
5 |
5 |
55 |
63 |
105 |
143 |
155 |
268 |
6 |
6 |
56 |
65 |
106 |
145 |
156 |
272 |
7 |
7 |
57 |
66 |
107 |
147 |
157 |
275 |
8 |
8 |
58 |
67 |
108 |
149 |
158 |
279 |
9 |
9 |
59 |
69 |
109 |
151 |
159 |
282 |
10 |
10 |
60 |
70 |
110 |
152 |
160 |
286 |
11 |
11 |
61 |
71 |
111 |
155 |
161 |
290 |
12 |
12 |
62 |
73 |
112 |
157 |
162 |
293 |
13 |
13 |
63 |
74 |
113 |
159 |
163 |
297 |
14 |
14 |
64 |
76 |
114 |
161 |
164 |
301 |
15 |
16 |
65 |
77 |
115 |
163 |
165 |
305 |
16 |
17 |
66 |
78 |
116 |
165 |
166 |
309 |
17 |
18 |
67 |
80 |
117 |
167 |
167 |
313 |
18 |
19 |
68 |
81 |
118 |
169 |
168 |
317 |
19 |
20 |
69 |
83 |
119 |
171 |
169 |
322 |
20 |
21 |
70 |
84 |
120 |
173 |
170 |
326 |
21 |
22 |
71 |
86 |
121 |
176 |
171 |
330 |
22 |
23 |
72 |
87 |
122 |
178 |
172 |
335 |
23 |
24 |
73 |
89 |
123 |
180 |
173 |
340 |
24 |
25 |
74 |
90 |
124 |
182 |
174 |
344 |
25 |
27 |
75 |
92 |
125 |
185 |
175 |
349 |
26 |
28 |
76 |
93 |
126 |
187 |
176 |
354 |
27 |
29 |
77 |
95 |
127 |
189 |
177 |
359 |
28 |
30 |
78 |
96 |
128 |
192 |
178 |
364 |
29 |
31 |
79 |
98 |
129 |
194 |
179 |
370 |
30 |
32 |
80 |
99 |
130 |
197 |
180 |
375 |
31 |
33 |
81 |
101 |
131 |
199 |
181 |
381 |
32 |
35 |
82 |
103 |
132 |
202 |
182 |
386 |
33 |
36 |
83 |
104 |
133 |
204 |
183 |
392 |
34 |
37 |
84 |
106 |
134 |
207 |
184 |
398 |
35 |
38 |
85 |
107 |
135 |
209 |
185 |
404 |
36 |
39 |
86 |
109 |
136 |
212 |
186 |
411 |
37 |
41 |
87 |
111 |
137 |
214 |
187 |
417 |
38 |
42 |
88 |
112 |
138 |
217 |
188 |
424 |
39 |
43 |
89 |
114 |
139 |
220 |
189 |
431 |
40 |
44 |
90 |
116 |
140 |
223 |
190 |
438 |
41 |
45 |
91 |
117 |
141 |
225 |
191 |
446 |
42 |
47 |
92 |
119 |
142 |
228 |
192 |
454 |
43 |
48 |
93 |
121 |
143 |
231 |
193 |
462 |
44 |
49 |
94 |
123 |
144 |
234 |
194 |
470 |
45 |
50 |
95 |
124 |
145 |
237 |
195 |
478 |
46 |
52 |
96 |
126 |
146 |
240 |
196 |
487 |
47 |
52 |
97 |
128 |
147 |
243 |
197 |
497 |
48 |
54 |
98 |
130 |
148 |
246 |
198 |
507 |
49 |
55 |
99 |
132 |
149 |
249 |
199 |
517 |
50 |
57 |
100 |
133 |
150 |
252 |
200 |
528 |
Count=從培養皿中計算所得的菌落數 Corrected=校正後的正確菌
